HP-2 Acoustic Collection
The HP-2 Acoustic collection is a high-performing and sound-absorbing 2-inch aperture family that can be specified as indirect/direct, direct, regressed direct, or as an unlit baffle in standard lengths and continuous runs. This platform offers a sophisticated and convenient way to dramatically improve the sound quality in many open space environments. We developed a calculator to help you specify Finelite acoustic products to meet the sound absorption requirements of your space.
Product Spotlight
Continuous Runs
Standard 4' and 8' length sections can be combined to make continuous runs
WELL V2
HP-2 Acoustic contributes towards WELL Sound Absorption S04 requirements
Eco-Friendly Acoustic Housing
100% polyester fiber housing that is 100% recyclable at the end of useful life
Quality and Durable Material
Class A resistant material (ASTM E-84) and moisture resistant
Apparent NRC up to 1.15
Designed to help achieve desired reverberation levels in open space environments
22 Aesthetic Colors
Consult factory for extended acoustic housing color options

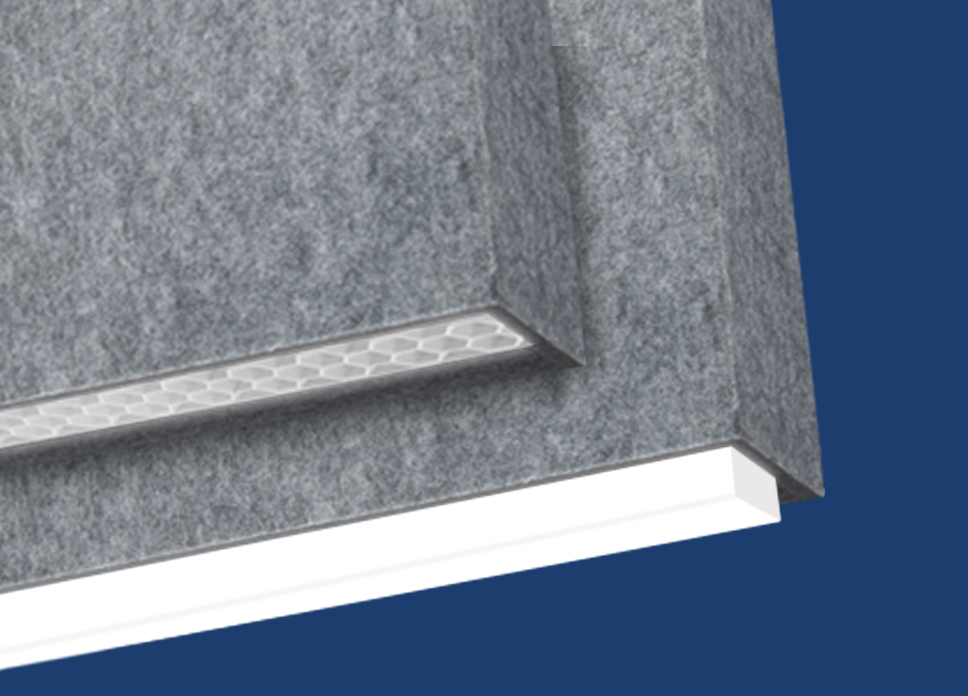

Multiple Downlight Options
Flush, Bottom Glow, Drop Down Lens, Flat Diffuser with 1" Regress, White Cross Blade Baffle, Hollowed Ellipse Louver, and Hex Louver
Sound Absorption
Product |
Spacing |
Sabins (ft2 of sound absorption area) per Unit |
Equivalent Ceiling Treatment* |
||||||
|---|---|---|---|---|---|---|---|---|---|
125Hz |
250Hz |
500Hz |
1000Hz |
2000Hz |
4000Hz |
Apparent NRC |
Apparent SAA |
||
HP-2 Acoustic Baffle Lit 8" |
Spaced 12" |
1.33 |
2.24 |
5.23 |
8.29 |
11.46 |
11.85 |
0.85 |
0.84 |
Spaced 18" |
1.47 |
2.38 |
5.35 |
9.68 |
12.40 |
13.15 |
0.60 |
0.61 |
|
Spaced 24" |
1.50 |
2.49 |
5.57 |
9.91 |
13.07 |
13.55 |
0.50 |
0.48 |
|
HP-2 Acoustic Baffle Lit 12" |
Spaced 12" |
3.06 |
4.07 |
7.25 |
11.67 |
14.67 |
15.00 |
1.15 |
1.16 |
Spaced 18" |
2.54 |
4.65 |
8.04 |
13.09 |
16.37 |
17.07 |
0.85 |
0.87 |
|
Spaced 24" |
3.13 |
4.77 |
8.91 |
14.16 |
17.41 |
17.41 |
0.70 |
0.69 |
|
HP-2 Acoustic Baffle Unlit 8" |
Spaced 12" |
1.61 |
2.97 |
6.24 |
8.81 |
11.94 |
12.90 |
0.90 |
0.92 |
Spaced 18" |
1.46 |
3.45 |
6.55 |
10.25 |
13.09 |
14.35 |
0.70 |
0.68 |
|
Spaced 24" |
1.72 |
3.21 |
7.09 |
11.07 |
13.85 |
14.82 |
0.55 |
0.54 |
|
HP-2 Acoustic Baffle Unlit 12" |
Spaced 12" |
2.13 |
4.94 |
8.30 |
11.94 |
15.28 |
16.06 |
1.25 |
1.25 |
Spaced 18" |
2.13 |
5.22 |
8.77 |
13.94 |
16.96 |
18.17 |
0.90 |
0.93 |
|
Spaced 24" |
2.41 |
6.14 |
9.68 |
14.90 |
17.81 |
19.43 |
0.75 |
0.74 |
|
*Apparent NRC & SAA ratings were calculated from the measured total absorption in sabins divided by the area of a projected horizontal plane that encompasses the set of objects. This provides an accurate comparison to 2-dimensional ceiling surface treatments.
