CONTROLS > FINETUNE TCS > LOCAL AND MASTER SWITCHES

Low Voltage Switches
Document
Document
Document
Easily control intensity, color, and on/off functions with specification grade low voltage Local and Master switches. Designed with Static White and Tunable White in mind, TCS offers options which provide the user with intuitive control of their space.






Specifications

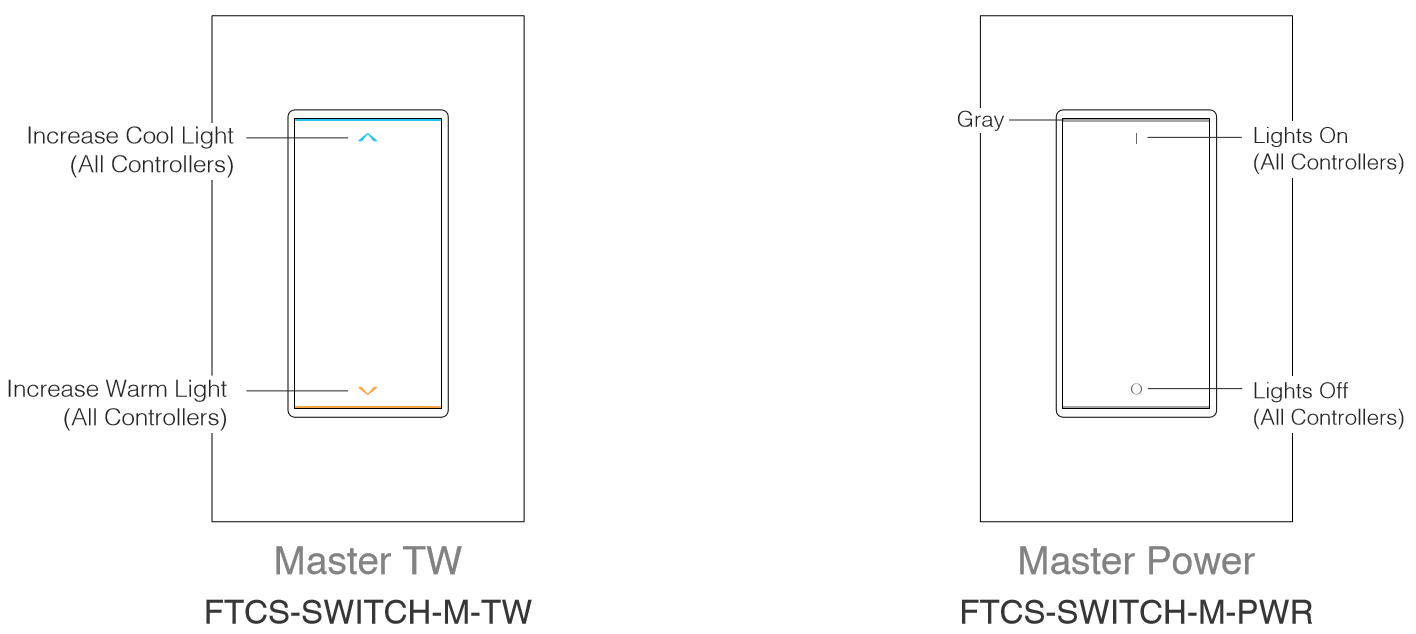

- Master Switches control all the Layer Packs on the same shared BUS

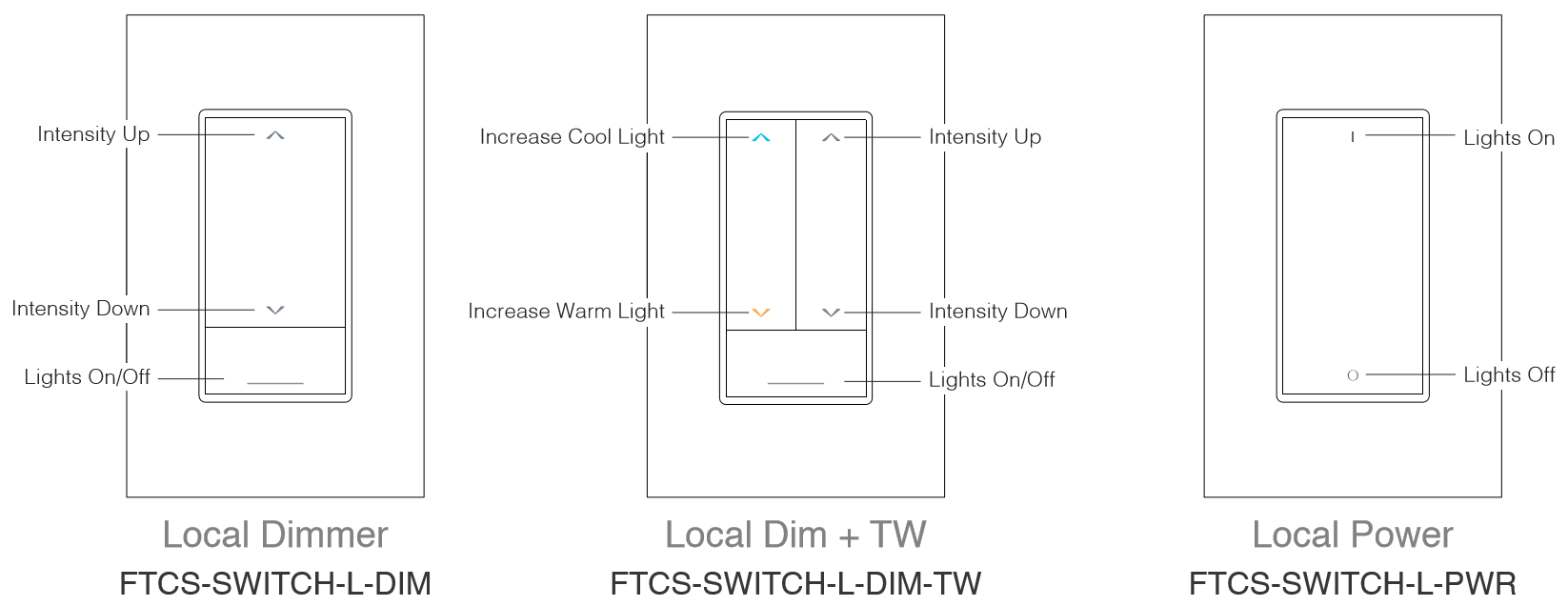

- Local Switches control only the Layer Pack they are connected to
- Cable connections between devices not to exceed 600 feet
- No switch limit (daisy chain as many as needed for space)
- Matching switch plates in 1 - 4 gang options offered

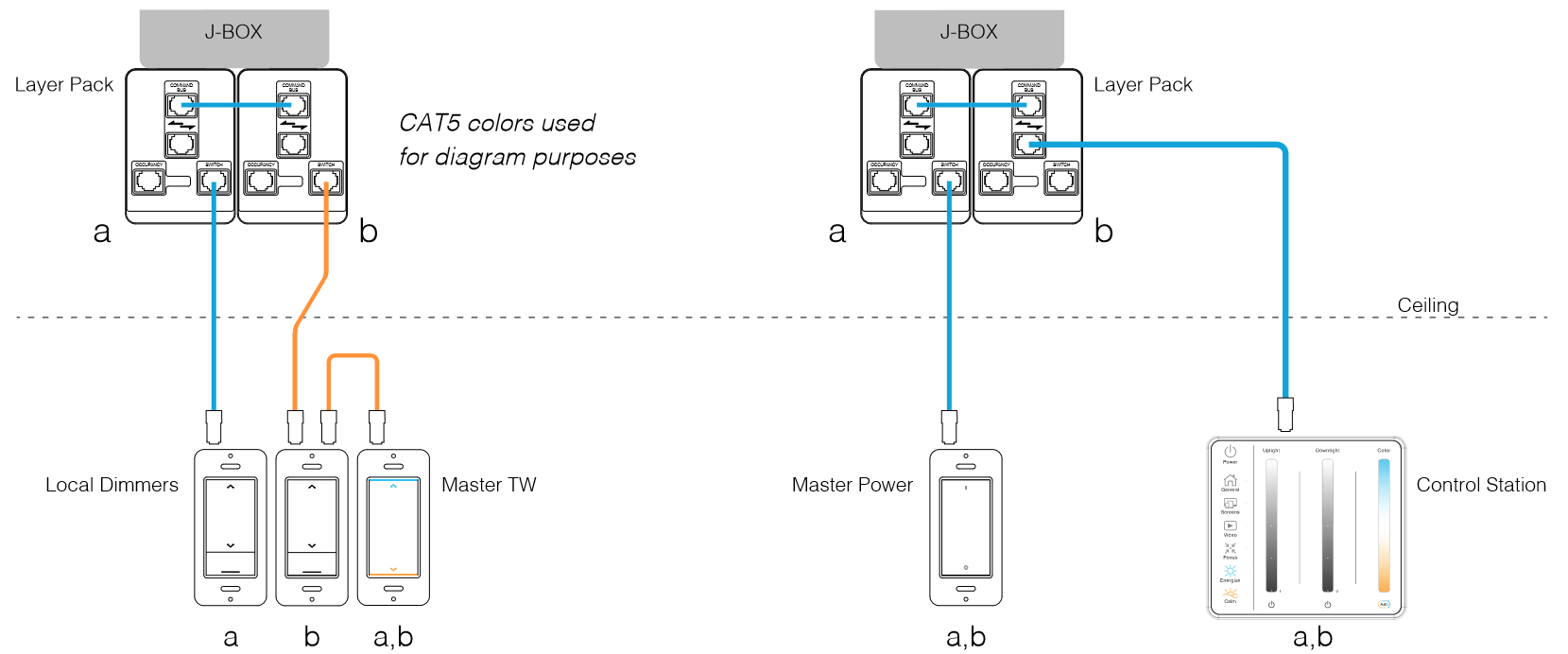

Note: A CAT5 splitter can be used to join Local Switches together at multiple locations to the same Layer Pack without the need to daisy chain
