0-10V Layer Pack
Document
Document
Document
The 0-10V Layer Pack lighting controls send analog voltage to the luminaires and are the interface for all low voltage user controls. Each 0-10V Layer Pack controls a separate zone or “layer of light” and is plug-n-play ready for 0-10V luminaires. Using a bi-directional BUS system design, the 0-10V Layer Packs allow for communication amongst all connected devices.






Specifications
- Catalog Code: FTCS-LP-10V
- 120/277VAC - 50/60 Hz
- 8A Load Relay
- 24VDC Power Supply @ 300mA
- Plenum Rated (UL2043)
- Emergency Device (UL924)
- Sink Current - 25mA per 0-10V output
- 5-Year Warranty
Note: Each 0-10V Layer Pack supports up to an 8 amp load
Total load allowed @120VAC = 960 Watts, @277VAC = 2,216 Watts


Downloads
COLLATERAL
Document
Document
Document
TECH SHEET
Document
RESEARCH
Document
Document
INSTALLATION INSTRUCTION
Document
TOOL KITS
Document
Document

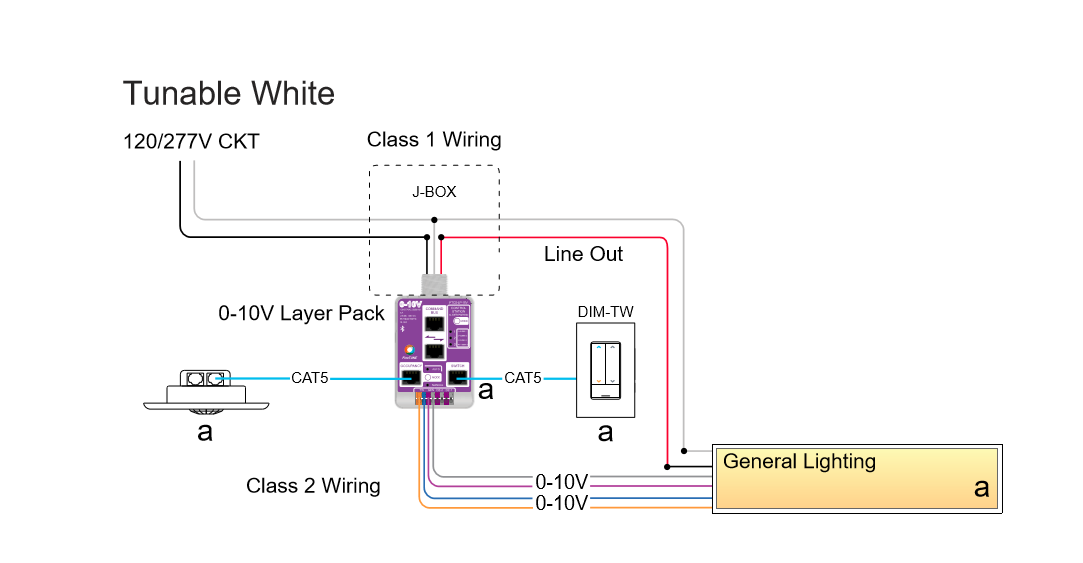

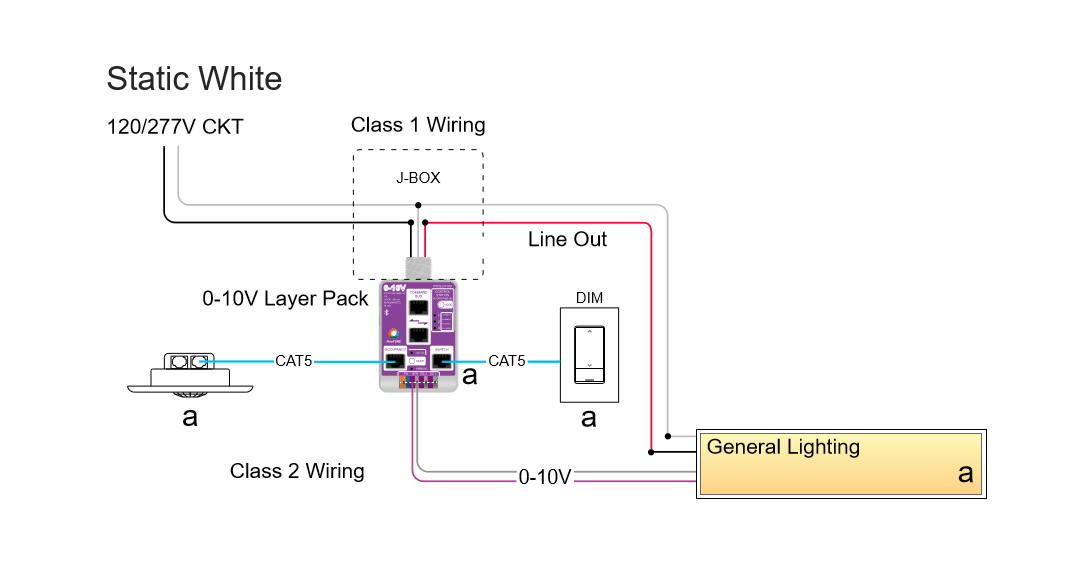

WIRING DIAGRAMS
